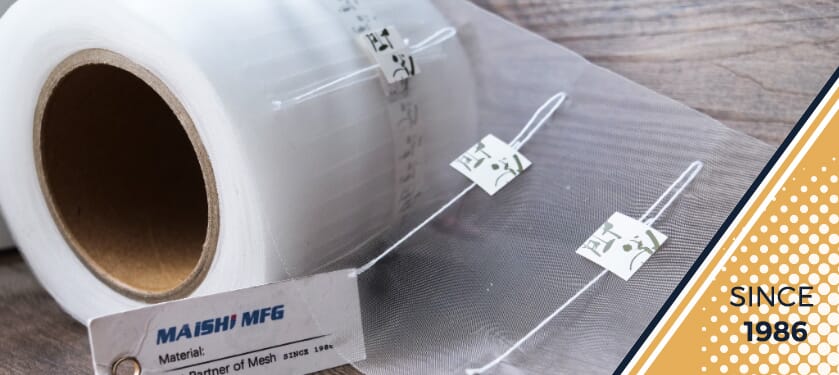

Pyramid Tea Bag Filter Mesh Rolls with String and Tag
Ready-to-pack filter mesh rolls for pyramid (triangle) tea bags in PLA, nylon, PET and nonwoven. Your tag artwork and string are ultrasonically welded on, so the roll goes straight onto your tea bag packing machine.
Request a quoteSee specifications
Four filter materials, one roll format
Every material is supplied in the same industry-standard roll widths and tag pitches, so you can switch material without changing your packing machine.
PLA Corn Fiber Tea Bag Filter Mesh
Biodegradable PLA mesh made from plant-based polylactic acid. The premium option for brands that want a plastic-free story.

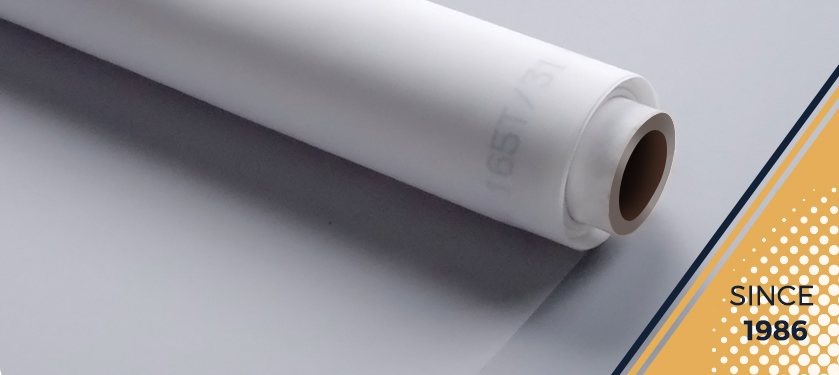

View PLA (corn fiber) meshNylon Tea Bag Filter Mesh
Clear, strong nylon mesh that shows the whole tea leaves inside the pyramid. The most widely used material because of its value for money.

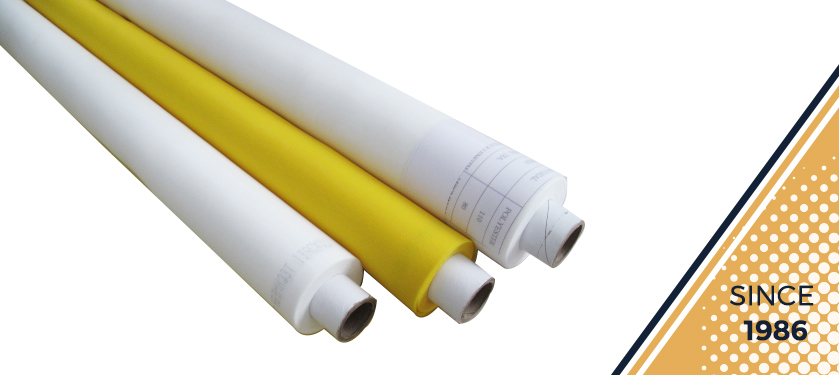

View Nylon meshPET Polyester Tea Bag Filter Mesh
Polyester (PET) mesh with a transparent, even weave, used as an alternative to nylon for pyramid tea bags.
View PET (polyester) meshNonwoven Tea Bag Filter Material
Soft nonwoven filter fabric for pyramid bags, suited to finer cuts, herbal blends and fruit infusions. Also used for drip coffee filters.
View Nonwoven meshMade to fit the machines you already run
Pyramid tea bag packing is a standardised industry. Tea bags around the world use a small set of sizes, and the filter rolls are matched to them. We supply the three standard formats:
| Roll width | Tag pitch | Typical bag |
|---|---|---|
| 120 mm | 50 mm | Small pyramid bag |
| 140 mm | 58 mm | Standard pyramid bag |
| 160 mm | 65 mm | Large pyramid bag |
Each roll carries 6,000 tags as standard. Ask us if your machine needs a different count.
Custom tags and strings
Tag artwork
Printed from your own design. Send exact CMYK colour values so the tag matches your packaging.
Tag size and shape
20 x 20 mm and 25 x 25 mm squares are standard. Round, scalloped, butterfly and custom outlines are available.
String length
16 to 17 cm, with 17 cm the most common. String and tag are welded by ultrasonic, with no glue.
From mesh roll to tagged roll

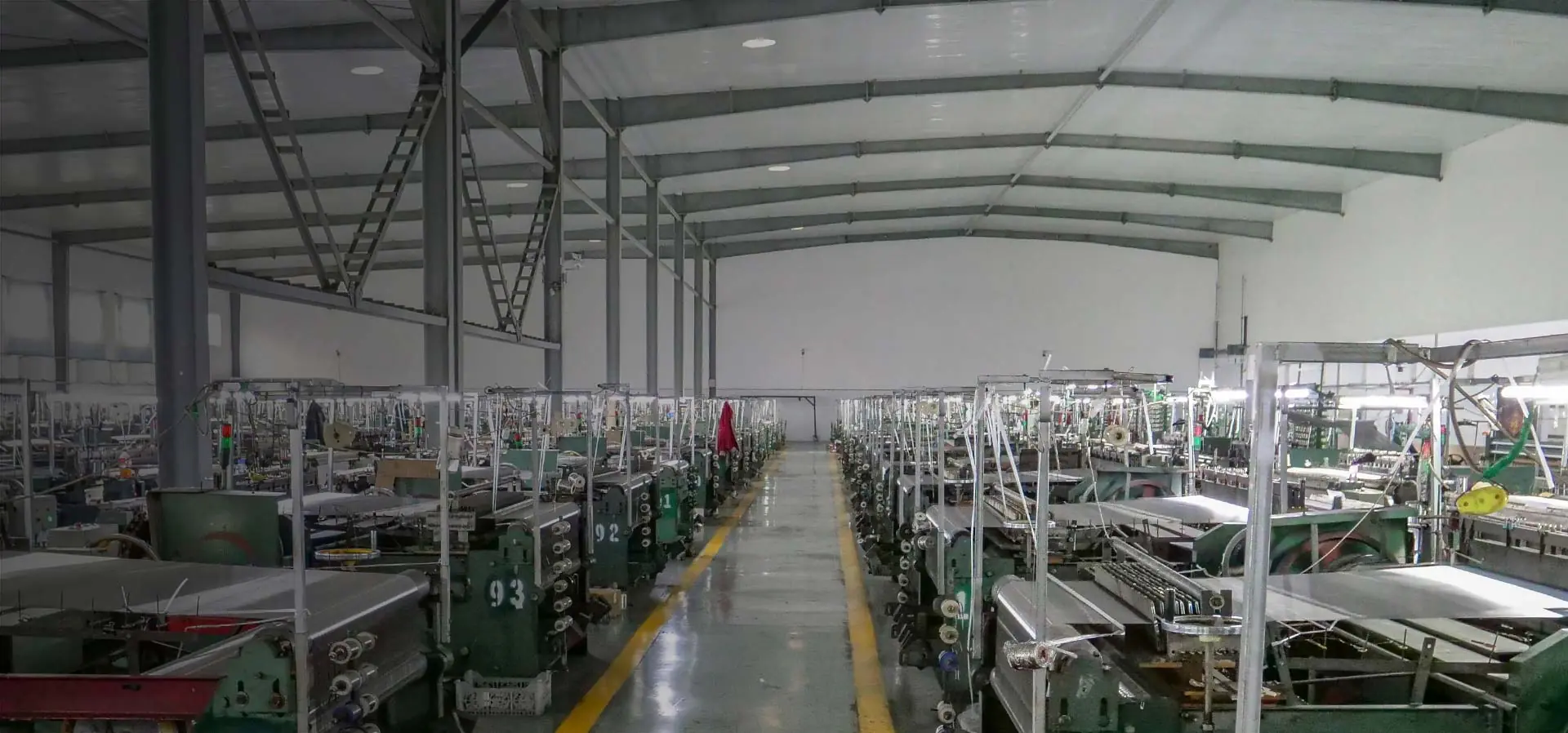

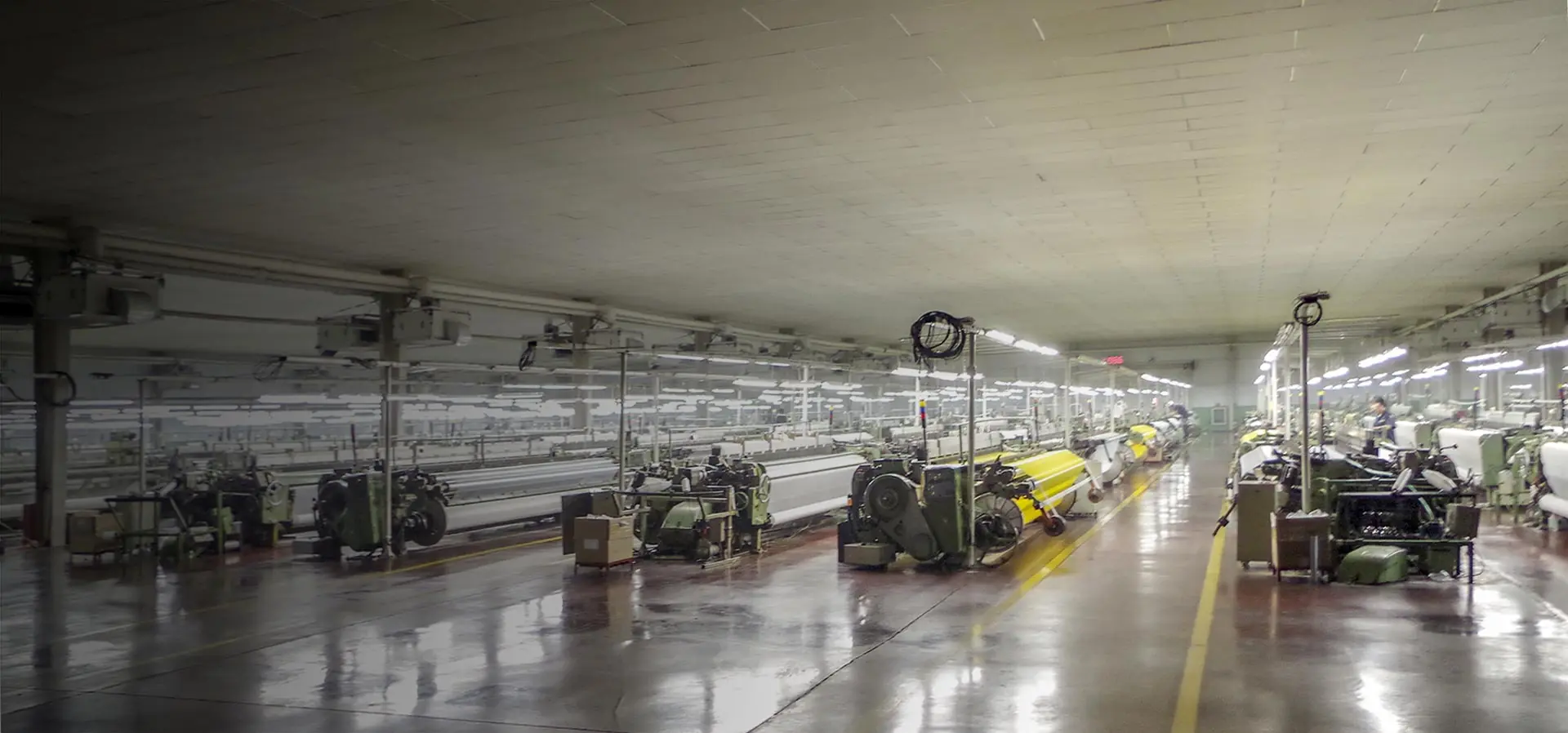

The mesh is woven, heat-set and slit into narrow rolls. Automatic tagging lines then weld the string to the tag and the tag and string to the mesh by ultrasonic, add a paper liner strip and rewind the finished roll.
A single tagging line runs at about 70 tags per minute, so a 6,000-tag roll is finished in under two hours.
See the production process- Raw materials from China, with Japanese raw material options
- Mesh heat-set and slit to the exact roll width
- String and tag welded by ultrasonic, no glue
- Paper liner strip keeps export rolls tight
- Cartons on pallets, wooden cases on request
A mesh specialist behind your tea bags
Mesh is our business
MAISHI MFG makes and exports woven wire mesh and synthetic mesh, including nylon and polyester filter mesh, under an ISO 9001:2015 quality system.
Export ready
Export packing, documents and communication handled by one sales team in Shijiazhuang, China.
Beyond tea
Nonwoven drip coffee filters and other infusion filter materials can be quoted on request.
Get a quote for your tea bag filter rolls
Tell us the material, roll width, tag design and annual quantity. We reply with a price and lead time.
